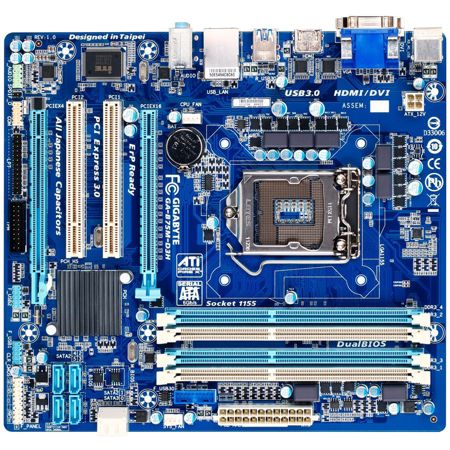

Gigabyte Ultra Durable 4 Classic GA-B75M-D3H Desktop Motherboard - Intel B75 Express Chipset - Socket H2 LGA-1155 Item # 692308
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
692308
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Gigabyte motherboard boasts SuperSpeed USB 3.0 technology made possible through an additional onboard host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.Gigabyte motherboard features a 3x USB power boost, delivering greater compatibility and extra power for USB devices. Gigabyte's unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
Product Details
| Item # | 692308 |
| Manufacturer # | NV9467 |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 1 |
| Hardware Features | DualBIOS, Q-Flash, AutoGreen, 3x USB Power Boost, Intel Extreme Memory Profile (XMP) support, On/Off Charge, Ultra Durable 4 Classic, AMD CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology |
| Onboard LEDs Header | Yes |
| Power Supply Supported | EPS12V |
| Multi GPU Supported | CrossFireX |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Compatible Processors | Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series |
| Certifications & Standards | ACPI 2.0a; CE; FCC; BSMI |
| Number of Network (RJ-45) Ports | 1 |
| Number of DVI Outputs | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 1 x audio ¦ 1 x SPDIF out ¦ 2 x USB 3.0 ¦ 4 x USB 2.0 ¦ 1 x serial ¦ 1 x parallel |
| Onboard Parallel Header | Yes |
| Product Line | Ultra Durable 4 Classic |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 -connectors: 1 x 7pin Serial ATA - 1 devices ¦ SATA-300 -connectors: 5 x 7pin SATA - 5 devices |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Total Processor Supported | 1 |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| VGA | Yes |
| Max Processors Qty | 1 |
| brand name | Gigabyte |
| Audio Channels | 7.1 |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| Processor Technology | Smart Response Technology |
| Number of USB 2.0 Ports | 4 |
| PS/2 Port | Yes |
| DVI | Yes |
| Memory Form Factor | DIMM |
| Processor Socket | LGA1155 Socket |
| Chipset Model | B75 Express |
| Sound Controller Manufacturer | Realtek |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| Number of PCI Slots | 2 |
| Total Number of Onboard USB Ports | 6 |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Processor Supported | Core i5; Core i7; Core i3; Pentium Dual-core; Celeron Dual-Core |
| HDMI | Yes |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| Total Number of USB Ports | 6 |
| Onboard Audio Header | Yes |
| width | 9.6 in |
| package contents | Ultra Durable 4 Classic GA-B75M-D3H Desktop Motherboard; Bundle Software |
| Number of Memory Slots | 4 |
| Sound Controller Model | ALC887 |
| depth | 8.7 in |
| Product Name | Ultra Durable 4 Classic GA-B75M-D3H Desktop Motherboard |
| Audio Codec | Realtek ALC887 |
| manufacturer | GIGABYTE Technology, Inc |
| Audio Line Out | Yes |
| Maximum Memory | 32 GB |
| Max Size | 32 GB |
| Supported RAM Integrity Check | Non-ECC |
| controller type | Serial ATA/300; Serial ATA/600 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Number of Total Expansion Slots | 4 |
| Chipset Manufacturer | Intel |
| Memory Technology | DDR3 SDRAM |
| form factor | Micro ATX |
| Number of HDMI Outputs | 1 |
| Number of Onboard USB 3.0 Ports | 2 |
| warranty length | 3-year limited |
| Onboard S/PDIF Header | Yes |
| model name | GA-B75M-D3H |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
SuperSpeed USB (USB 3.1 Gen 1)
-
SuperSpeed USB delivers effortless audio/video streaming, music and photos to your home, office, car, and anywhere in between. SuperSpeed USB transfers data up to 5Gbps, up to 10X faster than Hi-Speed USB. SuperSpeed USB works with all USB products. It’s backward compatible with USB 2.0.
USB 3.1 Specification
The USB 3.1 specification includes definitions for both 5Gbps (Gen 1) and 10Gbps (Gen 2) data rates:
- USB 3.1 Gen 1 – SuperSpeed USB (Products signal at 5Gbps)
- USB 3.1 Gen 2 – SuperSpeed USB 10Gbps (products signal at 10Gbps)
Note: The terms USB 3.1 Gen 1 and USB 3.0 are synonymous
-
What the Logos Mean to You
To use the SuperSpeed USB logo and icons, products must pass USB-IF certification testing to ensure they are built to meet the USB specifications and interoperate with other USB devices. This means you can be confident that Certified USB products will work with other Certified USB products. This content is being provided for educational purposes only and does not imply that the associated product has been certified. To confirm if a device has been certified, visit the www.usb.org website or look for the Certified SuperSpeed USB logo on the product or product packaging.
